D-ILA Projector Series

Ultimate High Dynamic Range


Supports FILMMAKER MODE and the Latest Signal Formats including HDR10 Plus

HDR (High Dynamic Range) drastically improves expressive power of images

When it comes to reproducing the rich video information of HDR content, including the extended brightness range, BT.2020 wide color gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.

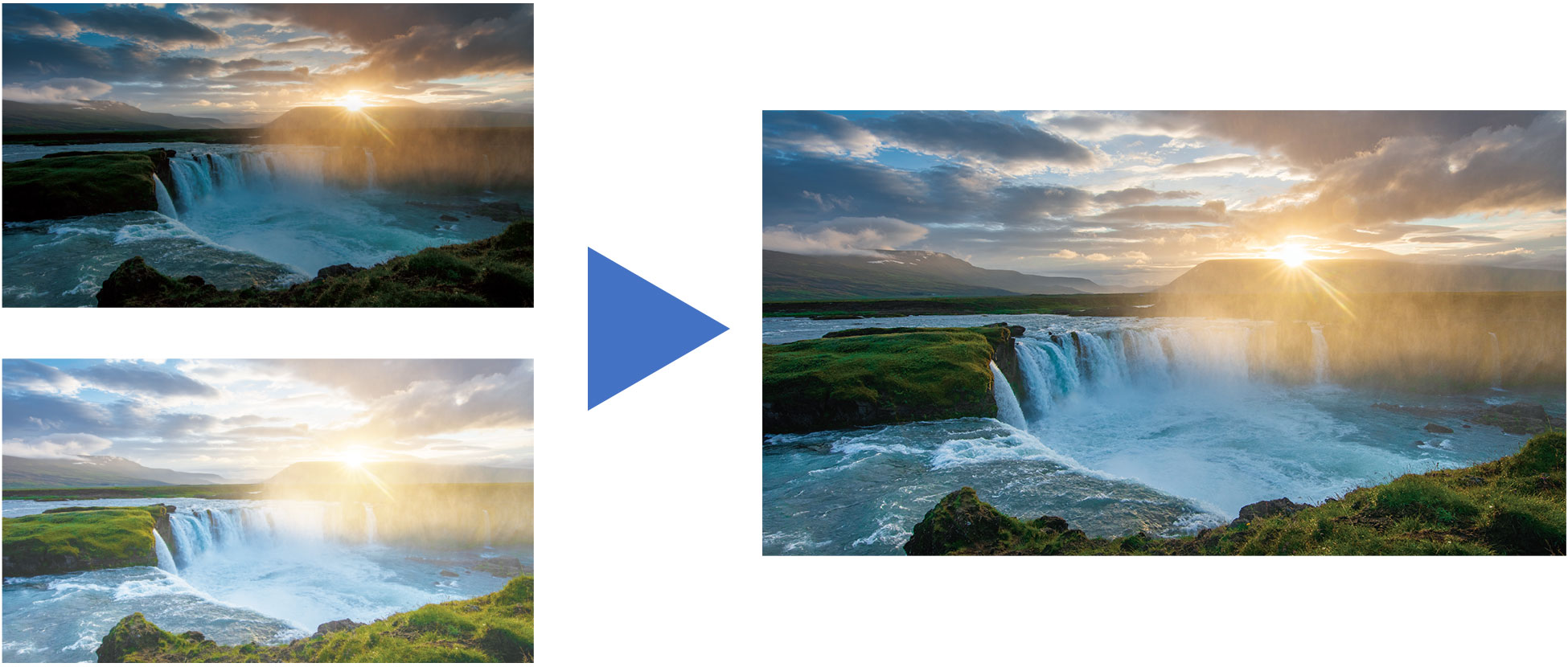

Support for two dynamic tone mappings

JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator had planned. Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm, and adjusts to the optimal dynamic range for image projection. Even content without mastering information can be analyzed based on the input signal, so all kinds of HDR10 content can be viewed with optimal picture quality.

Dynamic tone mappings

HDR10+ described

In HDR10, the basic standard for reproducing HDR content, there are only two pieces of information: MaxCLL, which represents the maximum brightness of the content, and MaxFALL, which represents the average maximum brightness. However with HDR10+, the luminance information for each scene is embedded in the content as metadata, which allows for scene-specific tone mapping and faithfully reproduces the HDR image intended by the creator.

D-ILA’s High Contrast

As described in the graph, HDR10 only contains static metadata, which can cause certain scenes to be too bright or too dark. On the contrary, HDR10+ contains dynamic metadata, specifically peak luminance information for each scene, making it possible to control the optimal brightness according to the scene and display the content with optimal brightness.

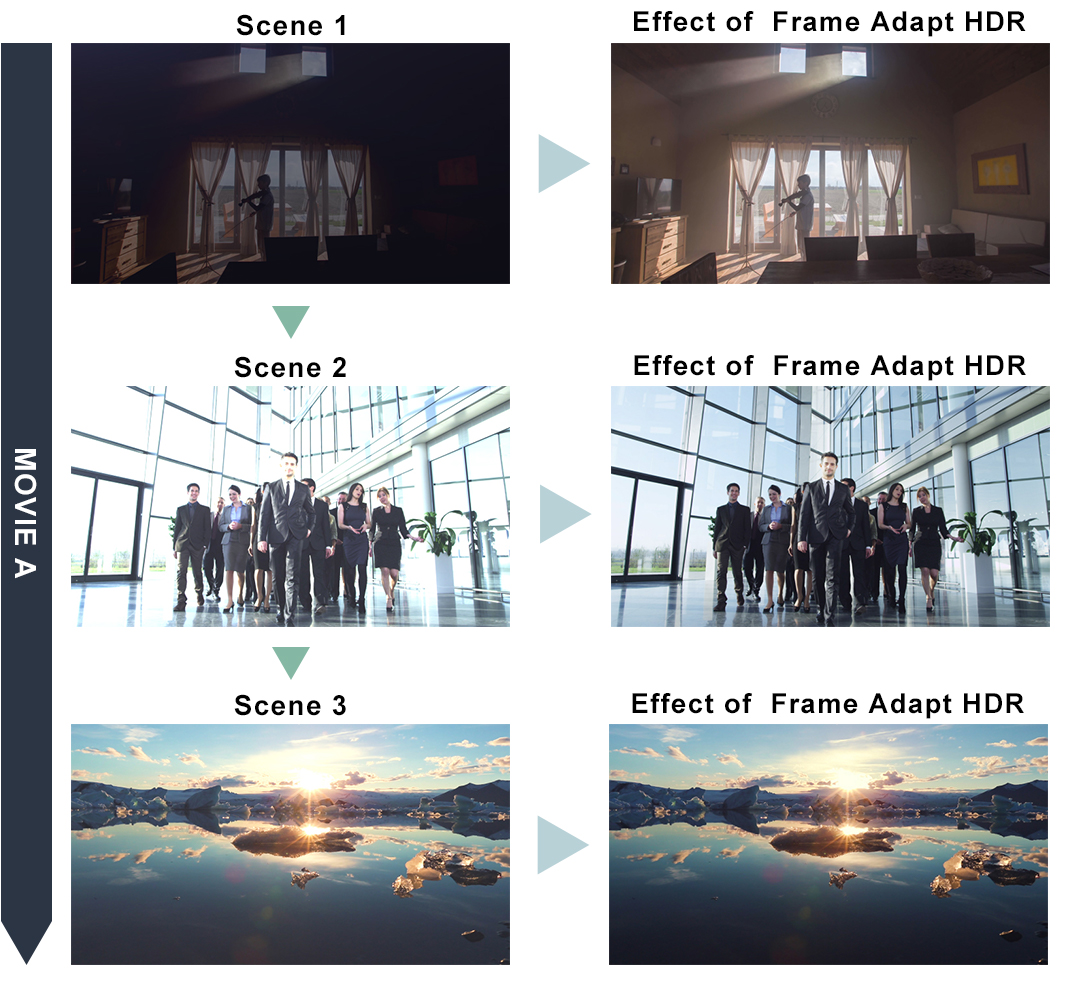

Frame Adapt HDR

Frame Adapt HDR

Frame Adapt HDR with Theater Optimizer helps to achieve the highest quality HDR images in projectors.

Theater Optimizer for optimal reproduction of HDR content suitable to each environment

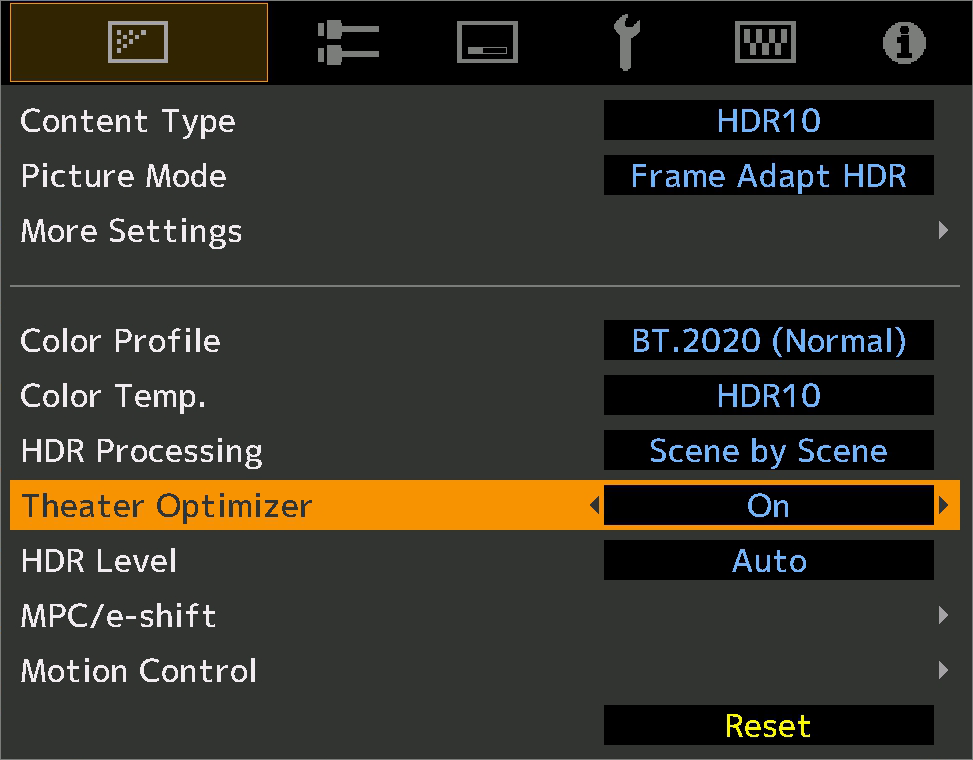

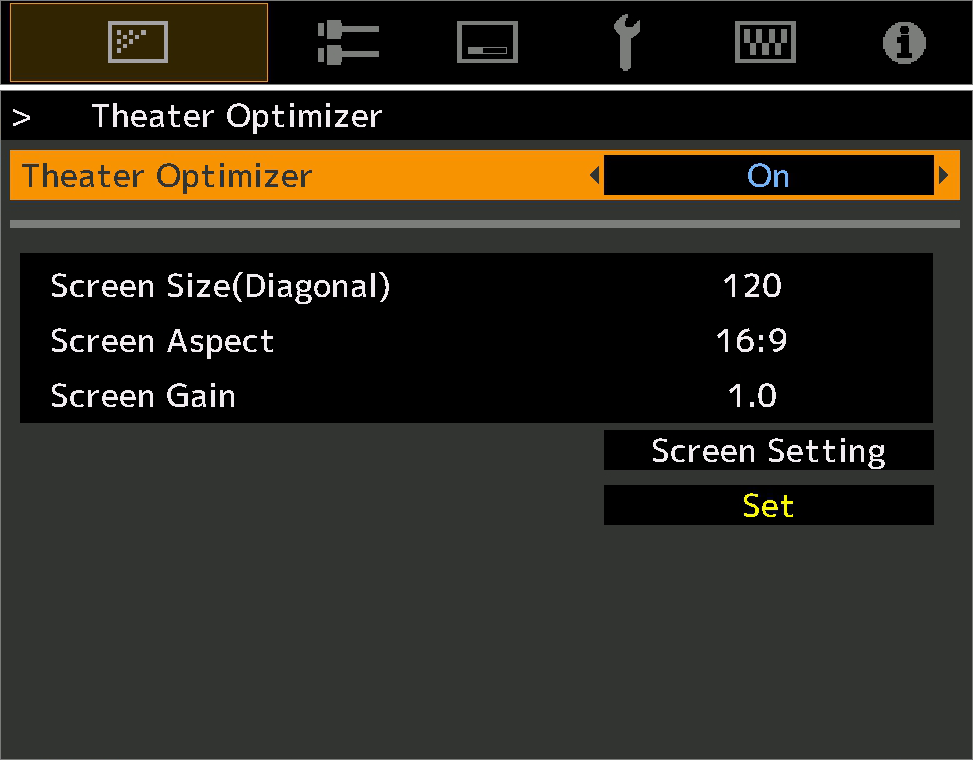

Brightness of the projector screen varies depending on the screen size, gain, frequency of use, and Setting. JVC projectors intelligently adjust tone mapping so that the content can be viewed at the appropriate brightness by automatically analyzing the environment in which the projector is used, simply by entering the screen size and gain information under Theater Optimizer in the Frame Adapt HDR picture mode. This ensures reference picture quality at the appropriate brightness, suitable to each custom home theater environment.

Theater Optimizer

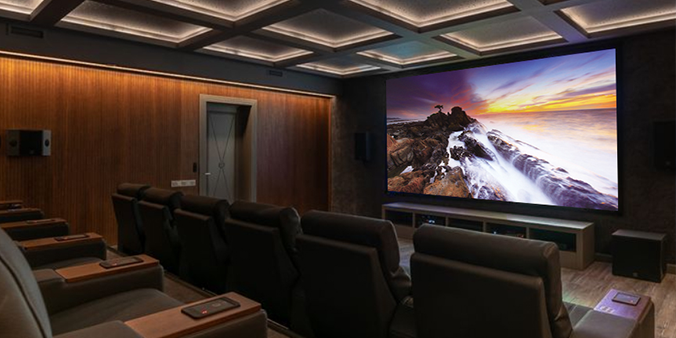

Note: The owner of this theater is a participant of Russia JVC Installation.
Supports software
Supports software

JVC projectors featuring Frame Adapt HDR and Theater Optimizer can express HDR/HDR10+ content at optimum brightness and darkness in each scene as the creator intended.

Improvements to "Frame Adapt HDR"*New

●HDR Quantizer with New Auto (Wide) level mode

Auto (Wide) provides brighter/more dynamic HDR images.

●Additional Frame Adapt HDR picture modes

Allows for optimum playback with the widest variety of lighting conditions or theater environments.

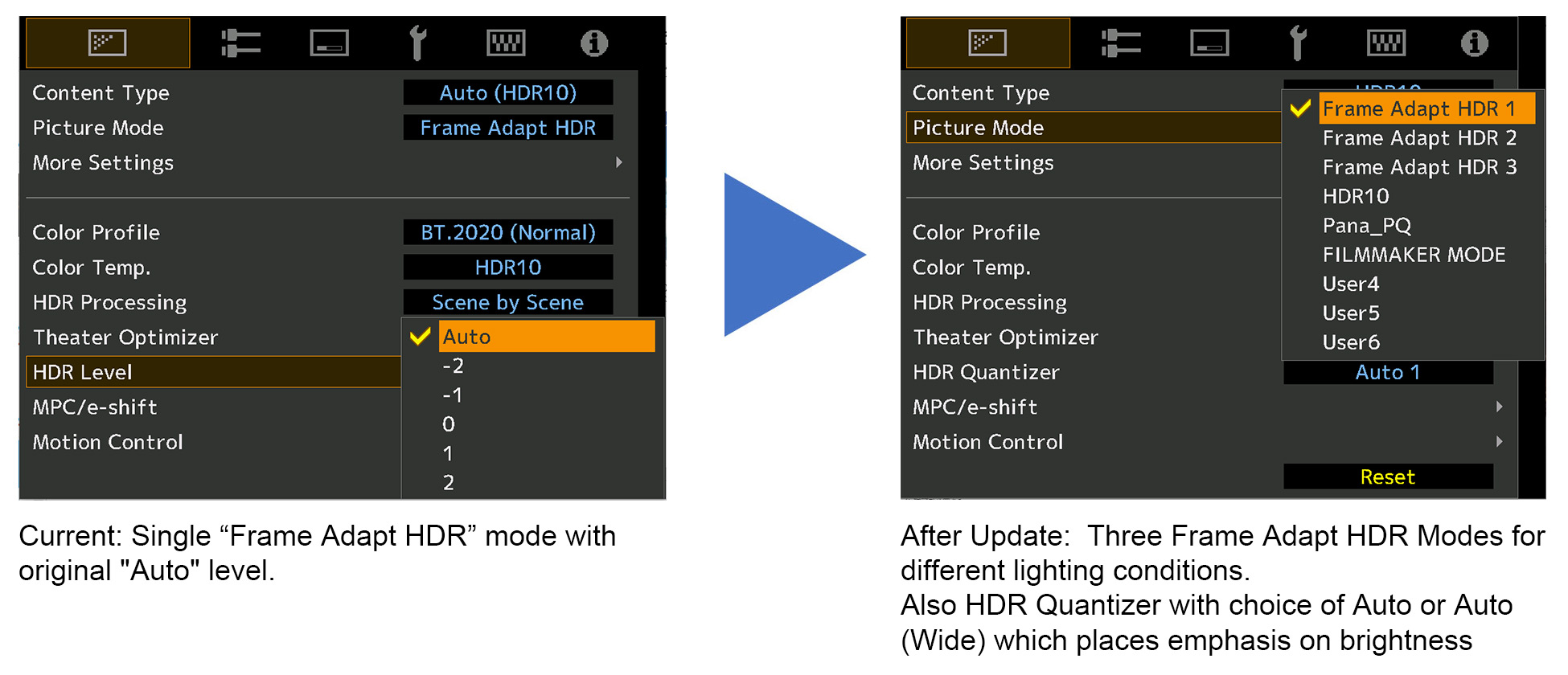

After Update:  Three Frame Adapt HDR Modes for different lighting conditions.Also HDR Quantizer with choice of Auto or Auto (Wide) which places emphasis on brightness
Movie Animation Documentary

FILMMAKER MODE that faithfully recreates the creator’s intentions*New

FILMMAKER MODE was developed by the UHD Alliance, an organization of Hollywood movie studios, TV studios, content distributors, consumer electronics manufacturers, and device developers, with the aim of faithfully reproducing the filmmakers' intentions in the home. When using this mode, picture quality adjustment functions such as frame interpolation and noise reduction are turned off, and the color temperature is set to D65 (6500K), allowing users to enjoy movies and documentaries with picture quality that is faithful to the original master.


* : The feature will be available through a firmware update scheduled for November 2022.
